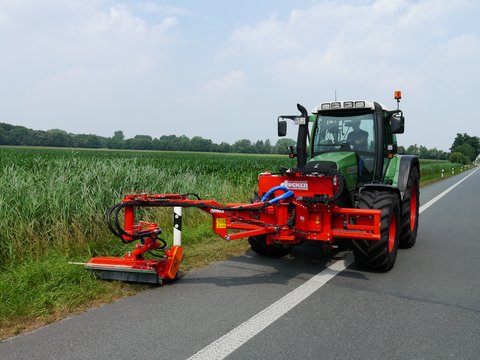

RSM 13 angebaut am Fendt Vario
RSM 13 angebaut am Unimog
RSM 13 angebaut am Unimog
Verge mower

RSM 13

The RSM 13 verge mower operates with a computer-controlled automatic sensor system, which allows mowing close to guide posts and traffic signs thanks to its optimally designed movement sequence. The particularly flat mower head, with a height of 300 mm, enables working under crash barriers. The mower head is equipped with a flail shaft, which offers optimum protection against stone chips.
A swash plate shaft is available as an option. The standard offset allows working even in narrow paths and in front of the vehicle. A continuously adjustable contact pressure control and the parallel-guided arm ensure optimum working. The design of the outrigger arms and the offset across the entire width also allow for a second pass. It is possible to reach over guide posts.

Technical Data RSM 13
Working widthm1,30
Mower head heightmm300
Cutting heightmm40 - 100
Cutting system Flails / Swashplates
Drive mower headltr./min. bar50 / 300
Oil spply of the control unitltr./min. bar20 / 180
Weight basic equipmentkg950 / 1050
Working area left-middle-right
Max. delivery to the frontm3,50
Hydraulic side shiftm1,60

Leaflet „OUTRIGGER PRODUCT RANGE“


For more information on our outriggers, see our current leaflet.
