MK 25 zusammengestellt mit DUA 700 und RSM angebaut am Schlepper

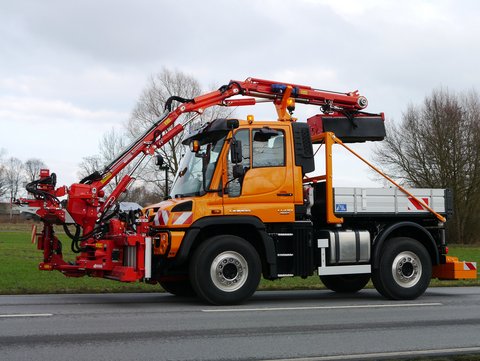

MK 25 mit DUA 800 Transportablage nach hinten am Unimog
MK 25 ausgestattet mit DUA 800 angebaut am Unimog

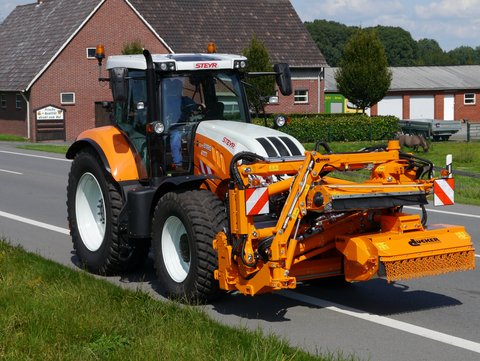

MK 25 in Transportstellung am Steyr
MK 25 am Schlepper im Einsatz an Seitenstreifen angebaut
Mower combination

MK 25

Joining of the DUA and RSM basic units forms MK 25 mowing combination. This is attached to the vehicle plate in size 3 or 5 and powered over the PTO shaft or the power hydraulics of the carrier vehicle. The serially used Tasttronic at the DUA and the computer-supported control of the RSM verge mower relieve the operator. After disassembly of the RSM, a full front PTO shaft will be available with all exchangeable working tools. The verge mower can also be used as a single unit. The working width from the vehicle centre reaches to 7.80 m (MK 25-800).

Technical Data  MK 25-700MK 25-800
Working width from the centre of the vehicle (without mower head)m6,30 (6,80)7,30 (7,80)
Transport widthm2,502,50
Weight basic equipmentkg2.1002.300
Hydraulic side shift (without mower head)m1,10 (1,60)1,10 (1,60)

Leaflet „OUTRIGGER PRODUCT RANGE“


For more information on our outriggers, see our current leaflet.
