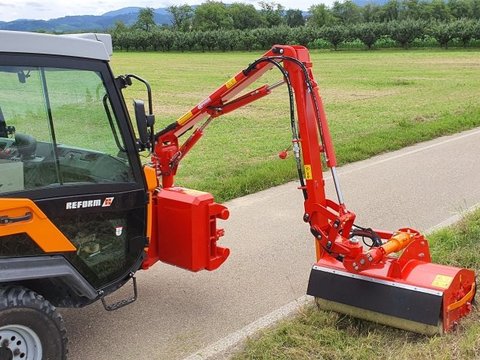

MBM 400 mit Mähkopf angebaut am Reform
MBM 400 mit Mähkopf angebaut am Steyr 4105
Outrigger

MBM 400

The MBM 400 outrigger is specifically intended for front attachment to municipal equipment carriers or tractors of the 80 HP class (approx. 6 tons). The equipment is powered either by a hydraulic system integrated in the device that is driven through the PTO shaft or the power hydraulics of the carrier vehicle. The work area is to the left, right and in front of the vehicle. The basic unit serves to take up various work equipment. The working width from the vehicle centre reaches to 5.30 m.

Technical Data  MBM 400UNA 450UNA 600UNA 600
Working width from the centre of the vehicle with mower headm5,305,406,007,30
PTO speedrpm650650650650
Weight basic equipmentkg630750800950
Transport widthm2,002,002,402,50
Hydraulic side shiftm1,401,401,601,70

Leaflet „OUTRIGGER PRODUCT RANGE“


For more information on our outriggers, see our current leaflet.
