DUA 700 mit AWS am Claas angebaut

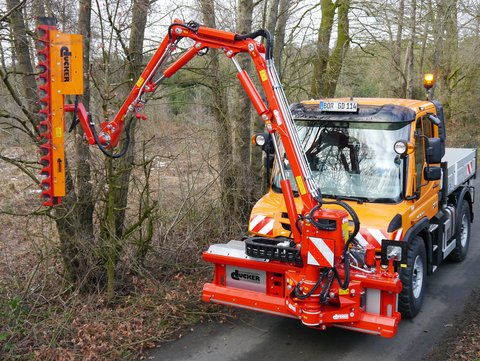

DUA 700 mit AWS am Unimog angebaut

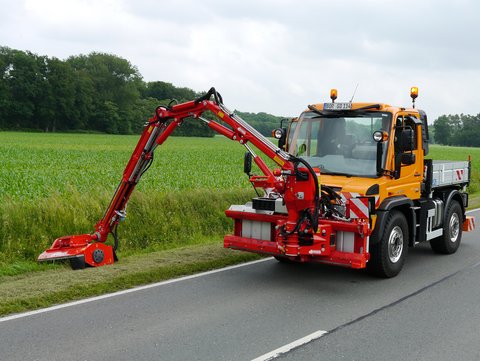

DUA 800 mit MK 12 angebaut am Unimog
DUA 800 mit AWS angebaut am Unimog

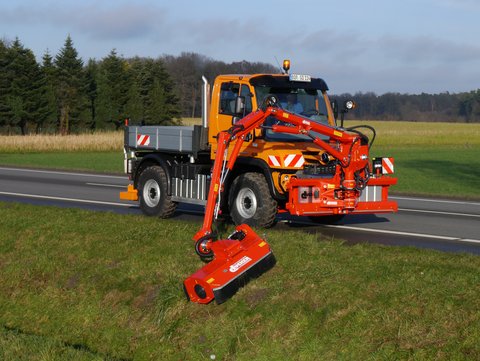

DUA 700 mit MK 12 angebaut am Unimog
Outrigger

DUA 700 / 800

The outriggers of the DUA series are designed for front attachment to the vehicle plates of size 3 or 5. The DUA-outriggers are made of 3 arms (DUA 700) or 3 arms and a telescopic outrigger (DUA 800). They are powered by the PTO shaft of the carrier vehicle or its power hydraulics. The basic unit serves to take up various work equipment. The work equipment can be used to the left, right and in front of the vehicle. The working width from the vehicle centre reaches to 7.80 m (DUA 800).  They are controlled by a CAN-BUS control with serial outrigger relief or alternatively a Tasttronic system.

Technical Data  DUA 700DUA 800
Working width from the centre of the vehiclem6,807,80
Transport widthm2,502,50
Weight basic equipmentkg9501.100
Hydraulic side shiftm1,601,60

Leaflet „OUTRIGGER PRODUCT RANGE“


For more information on our outriggers, see our current leaflet.
