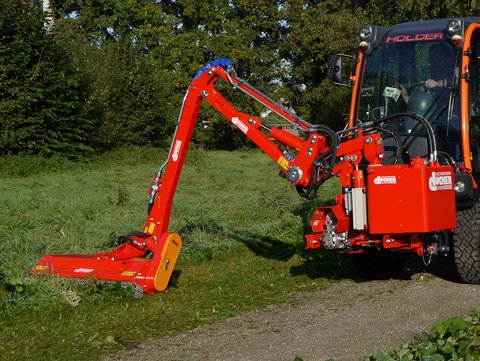

KBM 350 Front mit TMK

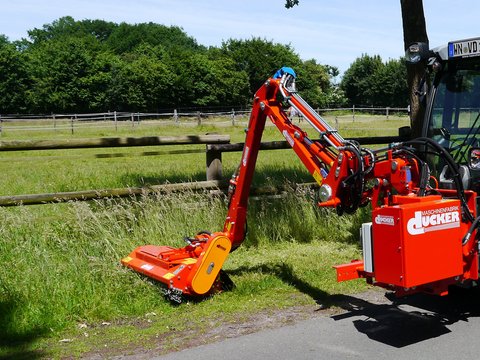

KBM 350 Front mit TMK
Flail mower head for outrigger

TMK 10 / 13

The TMK 10 and 13 flail mower heads are particularly flat, at only 300 mm height. This permits work under crash barriers.

Technical Data TMK 10TMK 13
Working widthm1,001,30
Mower head heightmm300300
Drive  V belt driveV belt drive
Required hydraulic powerltr./min bar56/20056/200
Drive side Convertible right-left operationConvertible right-left operation
Use of Tasttronic possible neinnein
Weightkg165210

The TMK 10 and TMK 13 can be attached to the following outriggers:
KBM 350 (only TMK 10), UNA 100, UNA 200 and DBM 400
