SFK mit Schmutzkratzleiste angebaut am Fendt
SFK mit Schmutzkratzleiste im Einsatz am Unimog

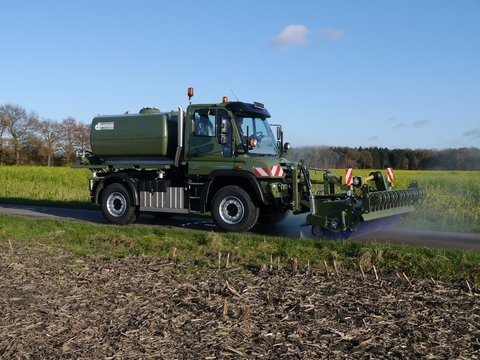

SFK ausgestattet mit Wassertechnik am Unimog
SFK mit Schmutzkratzleiste und Wasserhochdruckanlage am Steyr
Sweeping machines

Series SFK

The series SFK sweepers are designed for front attachment to tractors with three-point cat II + III, Unimog, trucks and wheel loaders. The sweeping roller balances itself optimally. Annoying adjustment with the supporting wheels is not necessary.

The sweeping rollers of the FKM series have a working width of 2.20 to 3.00 m. The sweepers are serially equipped with disc brushes. Sweeping rollers of plastic corrugated wire mix, snow-sweeping rollers and sweeping rollers in honeycomb form are available as well.

The series SFK can be equipped with a hydraulic side brush, a dirt collection tray water spraying device, water high-pressure facility, water tank or dirt scraper bar on request.

Technical Data SFK 2200240027003000
Working widthm2,202,402,703,00
Working width at 30° slanting positionm2,052,252,552,85
Total widthm2,452,652,953,30
Sweeping roller diametermm700700700700
Three-point linkageCat.II or IIIII or IIIII or IIIII or III
Hydraulic drive, min. oil quantity at 180 barltr./min.50507575
Weight without dirt collection traykg620640750850
Weight with dirt collection traykg7808509201082
Side broom weightkg33333333

Leaflet „Sweeping machines“


For more information on our sweeping machines, see our current leaflet.
