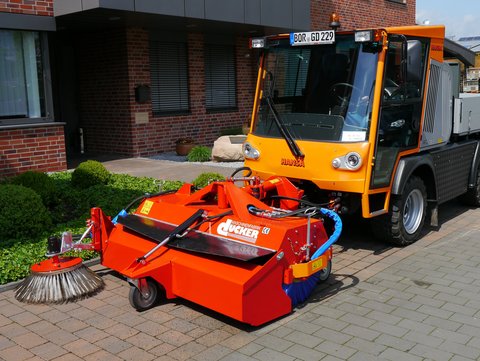

HDK mit Schmutzsammelwanne und Seitenbesen am Hansa
HDK mit Schmutzsammelwanne und Seitenbesen am Radlader
HDK mit Schmutzsammelwanne und Seitenbesen am Fendt
HDK mit Schmutzsammelwanne und Seitenbesen am Schlepper
HDK am Holder am Straße kehren
HDK im Einsatz am Kubota
Sweeping machines

Series HDK

The compact build of the series HDK sweepers and the diverse attachment options ensure attachment to tractors, municipal implement carriers, yard loaders, forklifts, etc. The HDK sweepers are available for front or rear attachment.

The sweeper roll balances itself, which makes adjustment via the wheels unnecessary. The sweeping rollers of the HDK series have a working width of 1.30 to 2.70 m. The sweepers are serially equipped with disc brushes. Sweeping rollers of plastic corrugated wire mix, snow-sweeping rollers and sweeping rollers in honeycomb form are available as well.

The series HDK can be equipped with a hydraulic side brush, a dirt collection tray water spraying device, water high-pressure facility, water tank or dirt scraper bar on request.

Technical Data HDK 130016001800220024002700
Working widthm1,301,601,802,202,402,70
Total widthm1,521,822,022,422,622,92
Sweeping roller diametermm600600600600600600
Three-point linkageCat.I or III or III or III or III or IIII or III
Hydraulic drive, min. oil quantity at 180 barltr./min.303030404050
Weight without dirt collection traykg240260280360390420
Weight with dirt collection traykg350390420510520680
Side broom weightkg333333333333

Leaflet „Sweeping machines“


For more information on our sweeping machines, see our current leaflet.
