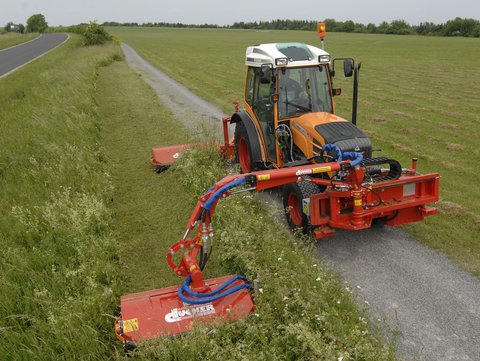

UNA 200 mit MKL angebaut am Hansa
UNA 200 mit MKL angebaut am John Deere
UNA 200  mit MKL angebaut am Hansa APZ 1003
UNA 200 mit MKL angebaut an Fendt

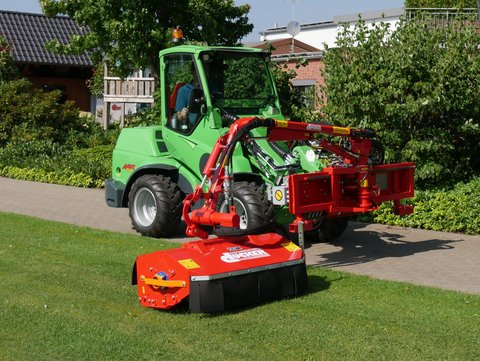

UNA 200 mit MKL angebaut an Avant

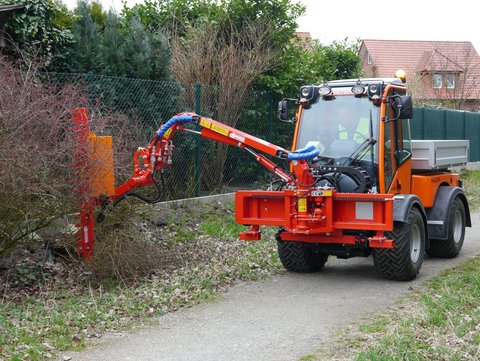

UNA 200 mit HS angebaut am Holder
Outrigger

UNA 100 / 200

The UNA 100 and UNA 200 outriggers are specifically designed for attachment to multi-purpose municipal vehicles with a dedicated hydraulic system and hydraulically height-adjustable front attachment plate. It is powered by the power hydraulics of the carrier vehicle or via the front PTO shaft. The basic units serve to take up various work equipment. The work equipment can be used to the left, right and in front of the vehicle. The working width from the vehicle centre reaches to 3.40 m.

Technical Data  UNA 100UNA 200DBM 400
Total range from the centre of the vehiclem1,83,44,45
Transport widthm1,651,651,7
Hydraulic side shiftm1,151,151,15
Drive if the implement fromltr./min bar62 / 20062 / 20062 / 200
Hydraulic power for arm movements fromltr./min bar25 / 18025 / 18025 / 180
Weight basic equipmentkg300340380

Leaflet „Outrigger for compact carrier vehicles“


For more information on our outriggers, see our current leaflet.
