KBM 350 mit AWS Frontanbau an Claas Traktor
KBM 350 mit Mähkopf Heckanbau an Kubota in Transportstellung
KBM 350 Heck mit TMK

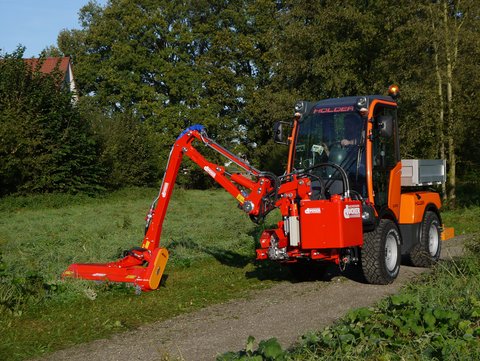

KBM 350 Front mit TMK
KBM 350 Front mit TMK
KBM 350 mit Mähkopf Frontanbau an Kärcher MIC in Transportstellung
Outrigger

KBM 350

The KBM 350 outrigger is delivered as a combined rear and front attachment for small tractors as of 25 KW (34 HP). Conversion from front to rear attachment and from left-hand to right-hand work is possible. It is attached to the three-point hydraulics cat. I + II. The max. reach is 3.50 m. The work equipment is powered hydraulically. The mowing head is serially equipped with beaters. As an alternative to the beaters, a rotor shaft with swash plates can be installed. The basic unit serves to take up various work equipment.

Technical Data KBM 350
Drive power fromkW (HP)25 (34)
PTO-speedrpm540 / 700 / 850 / 1000
Weight basic equipmentkg470
Total rangem3,5
Three-point linkageCat.I + II

Leaflet „Outrigger for compact carrier vehicles“


For more information on our outriggers, see our current leaflet.
