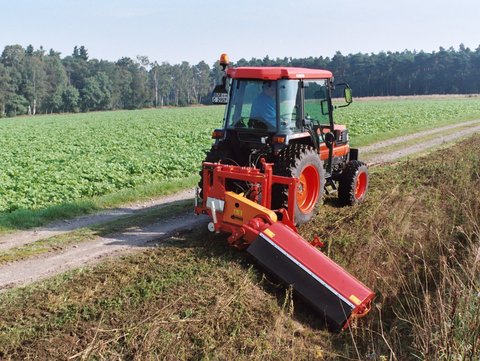

USM 13 am Kubota mäht Hangböschung
USM 13 am Traktor

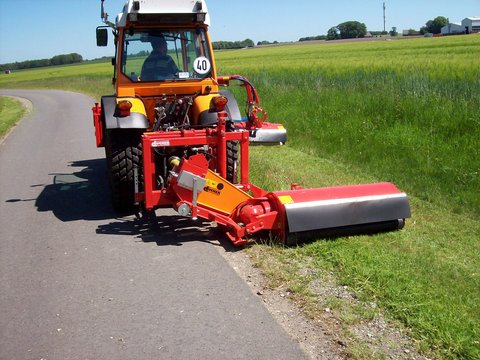

Schlegelmäher USM 13 am Fendt mäht Seitenstreifen
Flail mower

USM 10 / 13

The USM Uni side mowers work with a lateral offset next to the tractor unit as a rear-mounted unit in standardised three-point hydraulics. The USM 10 - 13 side mowers are designed for light tractors as of an output of 25 kW and have working widths of 1.00 to 1.30 m.

Technical Data USM 10-13 1013
Working widthm1,001,30
Total widthm2,102,40
Drive power fromkW2025
Number of flail bladesPieces2228
Weight basic unitkg420450
Three-point linkageCat.I + III + II
PTO-speedrpm540540
Side shiftm0,500,50

Leaflet „Flail mower USM, SMT, SMK“


For more information on our flail mowers, see our current leaflet.
